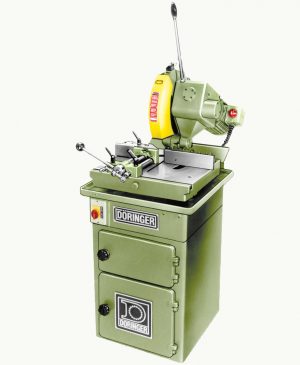

DORINGER Model D350

14″ Sawblade Standard Machine

Powerful Machine, Engineered For Precision,
Repetitious Cutting Of . . .

  • Solids
  • Large Pipe
  • Wide Sectionals Of Steel
  • Stainless Steel Aluminum
Category:

Description

Model D350 Standard Equipment

  • Quick Action Mechanical Vice
  • Cabinet Stand With Doors
  • 2 Speed Motor On All 3 Phase Machines
  • Overload Protection Switch With Mushroom Button For Quick Shut-Off
  • High Volume Electric Coolant Pump (Sealless)
  • Overload Protection Switch For Coolant Pump
  • Recirculation Coolant System
  • Large Removable Chip Tray
  • 7 Gallon Coolant Tank
  • Complete Set Of Allen Wrenches
  • Grease Gun
  • Standard Color – Hammertone Green
  • Quick Release Handles For Rapid Change Of Vice Position
  • 350MM (14″) Sawblade
  • Doringer H-32 Coolant Concentrate (1 Gallon) Mixing Ratio 10:1 With Water
  • 1 Year Warranty
    * Single Phase, 110/220 Volt, 1 Speed Motors
    Available At No Extra Charge

Head easily miters to any position with positive locking at 90 degrees & 45 degrees.
Workpiece remains stationary while head rotates for mitering.

Model D350 Optional Equipment

  • Air Vice Unit In Lieu Of Standard Mechanical Vice
  • Additional Clamping Arm Attached To The Air Vice Unit
  • Additional Clamping Arm Attached To Standard Mechanical Vice
  • Length Stop 0-40″
  • Slanted Table With Down-Chute For High Production Cutting
  • Material Infeed & Outfeed Conveyors
  • Special Jaws For Cutting Square Tubing

Model D350 Technical Specifications

Available Voltages*Motor Speed**Sawblade Speed**
110/220 Volts, 1 Phase, 60 Cycle1700 RPM 54 RPM
220 or 440 Volt, 3 Phase, 60 Cycle850/1700 RPM 27/54 RPM
220 or 440 Volt, 3 Phase, 60 Cycle1700/3400 RPM 54/108 RPM

* All Single Phase Motors Are Dual Voltage. All 3 Phase Motors Are Single Voltage.
Please Verify Your Available Voltage.
** Gear Reduction Ratio 1:31 For High Torque.

Cutting Capacity
Round Tubing:4.75" 0-45
Square Tubing:4" Straight
3.6" 0-45
Rectangular:6.3" X 2.75" Straight
4.75" X 2.35" 0-45
Solids:2.5" 0-45
Weight and Dimensions
Machine Packed Weight:780 LBS
Machine Unpacked Weight:710 LBS
Machine Packed Dimensions:64"H X 30"W X 43"L
Machine Unpacked Dimensions:58"H X 26"W X 36"L

Model D350 Warranty

All products are warranted to conform to the manufacturer’s general standards of quality of materials and workmanship. Any parts not meeting with standards will be supplied at no cost to the purchases up to 12 months after delivery date and will be fitted on return of the machine to the company’s factory. Parts deemed by the manufacturer to have failed through normal wear and tear, misuse or abuse are not covered by this warranty, even if failure occurs during the 12 month warranty period. Sawblades and other perishable tooling are not covered by warranty.
