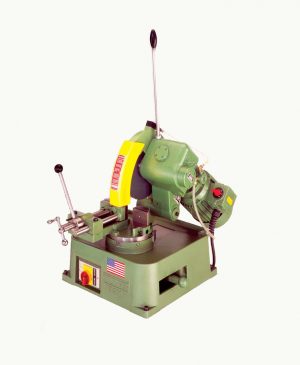

DORINGER Model D300

12″ Sawblade Standard Machine

Powerful, Most Reliable, and Versatile Machine
For Cutting . . .

  • Steel
  • Stainless Steel
  • Aluminum
Category:

Description

Model D300 Standard Equipment

  • Choice of Motors: 3 Phase, 2 Speed, 3.6 H.P. or 1 Phase, 110/220 Volt 2.5 H.P.
  • Robust Gear Box
  • Double Hinged Safety Guards
  • Mitering Table (90′ – 45′)
  • Recirculating Coolant System (Reservoir In Base)
  • Main Switch With Overload Protection
  • Operators Manual, 12″ Sawblade, Allen Wrenches, & Coolant Included

Model D300 Optional Equipment

  • Cabinet Base Stand With Storage Space And Tool Rack
  • Air Vice Unit In Lieu Of Standard Mechanical Vice
  • Additional Clamping Arm Attached To The Air Vice Unit
  • Additional Clamping Arm Attached To Standard Mechanical Vice
  • Length Stop 0-40″
  • Slanted Table With Down-Chute For High Production Cutting
  • Material Indeed & Out feed Conveyors
  • Special Jaws For Cutting Square Tubing

Model D300 Technical Specifications

Cutting Range (300 MM Blade)
Round Tubing:90 - 3.75"
45 - 3.5"
Square Tubing:90 - 3.3"
45 - 3"
Rectangular:90 - 2.45"
45 - 2" X 4"
Solid Unit:2.5" MAX
Max. Vice Opening5.7"
Add 1/4" Capacity With Option 9 (See Price List)
Weight and Packing
Weight:330 LBS (Unpacked)
348 LBS (Packed)
Weight W/ Stand:440 LBS (Unpacked)
465 LBS (Packed)
Standard Color:Hammertone Green
Packing Type:Pallet & Crate

Model D300 Warranty

All products are warranted to conform to the manufacturer’s general standards of quality of materials and workmanship. Any parts not meeting with standards will be supplied at no cost to the purchases up to 12 months after delivery date and will be fitted on return of the machine to the company’s factory. Parts deemed by the manufacturer to have failed through normal wear and tear, misuse or abuse are not covered by this warranty, even if failure occurs during the 12 month warranty period. Sawblades and other perishable tooling are not covered by warranty.
